Highlight:
Solar PV Potting Adhesive
, Waterproof Solar Panel Silicone Sealant
, 50 Shore A Solar Silicone Sealant
Solar PV Potting Adhesive Solar Panel Silicone Sealant Waterproof 50 Shore A
Solar Panel Solar Photovoltaic Potting Adhesive Silicone Sealant Pv Modules
Factory Information:
With 20 years of glue-making experience, the factory covers an area of 40,000 square meters, is equipped with highly
mechanized equipment, has a daily output of 30,000 pieces, and more than 200 production and R&D personnel. The source
factory supports OEM/ODM. The products have high cost performance. We look forward to your contact.
Service
OEM ODM PRIVATE LABEL
Feature
Photovoltaic panel, solar cell module, junction box bonding seal
Color
Black, white or grey paste
Packaging
310ml,400ml,25KG,270KG or customize

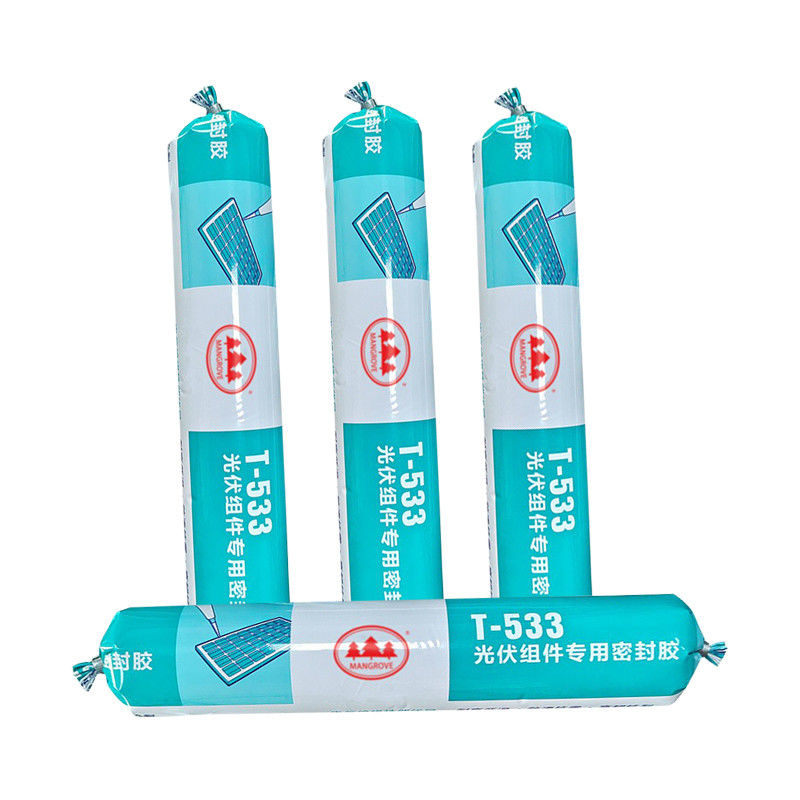

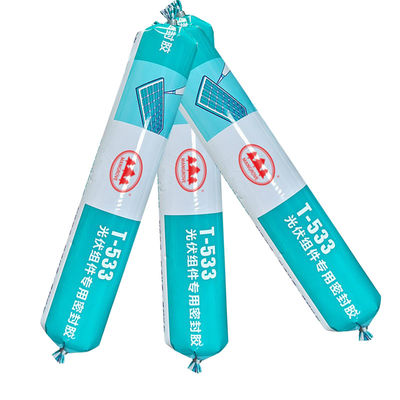

T-533 special sealant for photovoltaic modules is a single component neutral curing silicone rubber. The product has good
adhesion to aluminum, tempered glass, composite backing material, junction box PPO material, and can be used for bonding
and sealing of solar cell component frame and junction box.
Product Features:
Excellent Weather Resistance
Can withstand the tests of extreme climate conditions such as ultraviolet rays, high temperature, low temperature and humidity
when exposed to the outdoor environment for a long time without performance degradation.
High Light Transmittance
Ensure that light can pass through the colloid efficiently, reducing light loss and thereby improving the power generation
efficiency of photovoltaic modules.Enable more sunlight to reach the photovoltaic cells and be converted into electricity.
Good Bonding Performance
Has a strong bonding force with various materials of photovoltaic modules (such as glass, metal, backplane, etc.), ensuring the
stability of the module structure. Prevent delamination or shedding under the influence of external forces such as wind and
snow.
Electrical Insulation
Effectively isolate the current, ensure the electrical safety of the photovoltaic system and prevent problems such as leakage and
short circuit.
Corrosion Resistance
Resist the erosion of pollutants, acid and alkali substances in the atmosphere and extend the service life of photovoltaic modules.
Anti-Aging Performance:
Not prone to aging or yellowing during long-term use and maintain stable performance.
High and Low Temperature Resistance
Can still maintain good physical and chemical properties in extremely cold and high-temperature environments.
Application Scenarios
Photovoltaic module packaging, junction box sealing, frame bonding, bracket bonding and fixation, etc.
|
Product name
|
Photovoltaic module adhesive
|
|
Volume
|
310ml,400ml,25KG,270KG or customize
|
|
Usage
|
Photovoltaic panel, solar cell module, junction box bonding seal
|
|
Surface drying time
|
8-20 min
|
|
Hardness (HsA)
|
42-50
|
|
Elongation (%)
|
≥350
|
|
Dielectric strength (KV/mm)
|
≥20
|
|
Volume resistivity (ω.cm)
|
≥3.0X1015
|
|
Operating temperature( ℃)
|
-50—200
|
|
Operating temperature( ℃)
|
UL94HB
|
|
Service
|
Free Sample+OEM+ODM
|
|
Color
|
Black, white or grey paste
|
|
Package
|
According to customer's instructions
|
|
|
The product has good adhesion to aluminum, tempered glass, composite backing material, junction box PPO material, and can be used
for bonding and sealing of solar cell component frame and junction box.
|
Q: Are you trading company or manufacturer ?
A: We are factory which over 20 years of experience,and provide you direct prices.
Q: Can I be your agent?
A: Sure, we are looking for agent all over the world.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q:How can we guarantee glue quality?
A: Always a pre-production sample before mass production;
Always final Inspection before shipment.
